The system of apparatus membrane plasmapheresis UAM-01-«PF SPb» is intended for procedures of donor plasmapheresis, for obtaining of plasma and autoplasma in blood banking service, and for detoxication, immuno - and rheocorrection in practical public health services, in the divisions of toxicology, transfusion, cardiology, nephrology, endocrinology, allergology, pulmonology, oncology, dermatology, narcology, neurology, etc.; in obstetrics and gynecology, pediatrics, resuscitation, surgery; in the conditions of clinics, hospitals, in first aid service, in field medicine, in urgent cases, and in conditions of disaster medicine.

The apparatus UAM-01-«PF SPb» is completed with the membrain plasma filter (PFM-500 or PFM-800), made in accordance with TU 9444-003-49013468-2007, and with the transfusion line system.

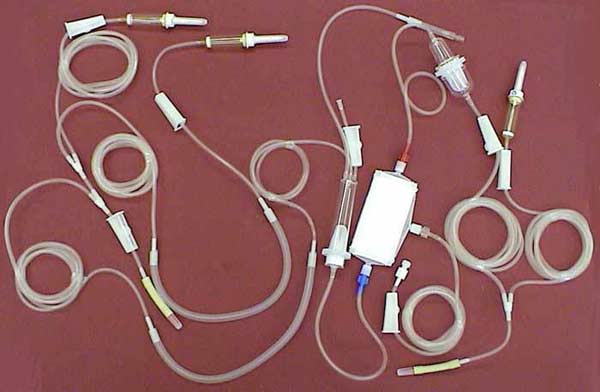

The system of apparatus membraneplasmapheresis UAM-01-"PF-SPb"

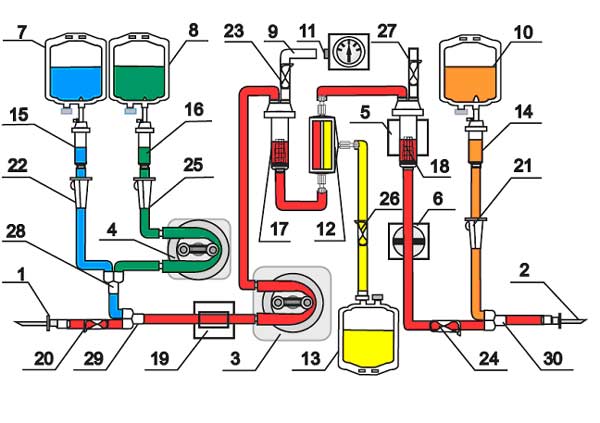

The scheme of extracorporeal contour of membrane plasmapheresis with a perfusion unit BP-05.
1 - a blood sampling needle; 2 - a needle of blood return; 3 - perfusion pump, 4 - an anticoagulant dosing pump; 5 - air carrier traps; 6 - safety valve; 7 - a container with an isotonic solution of sodium of chloride; 8 - a container with sodium citrate solution; 9 - the section line for connection with a pressure measuring instrument; 10 - capacity with plasma substitute; 11 - a measuring instrument of venous pressure; 12 - plasma filter; 13 - plasma collecting container; 14-18 - filters-droppers; 19 - the unit of controls the pressure preload; 20-27 - line clamps; 28-30 - tees.
